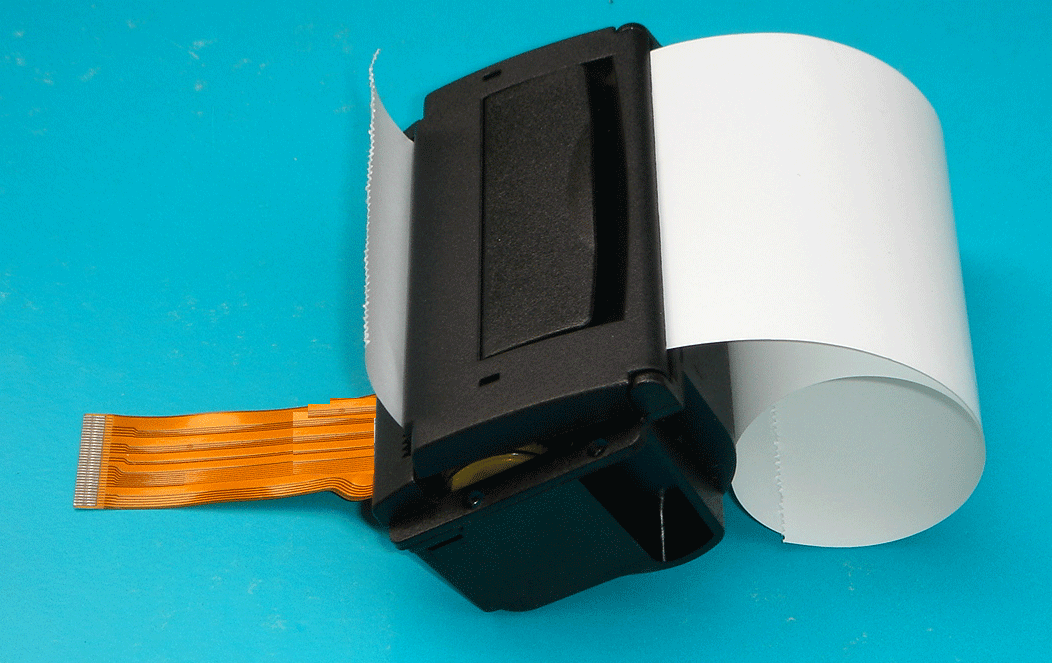

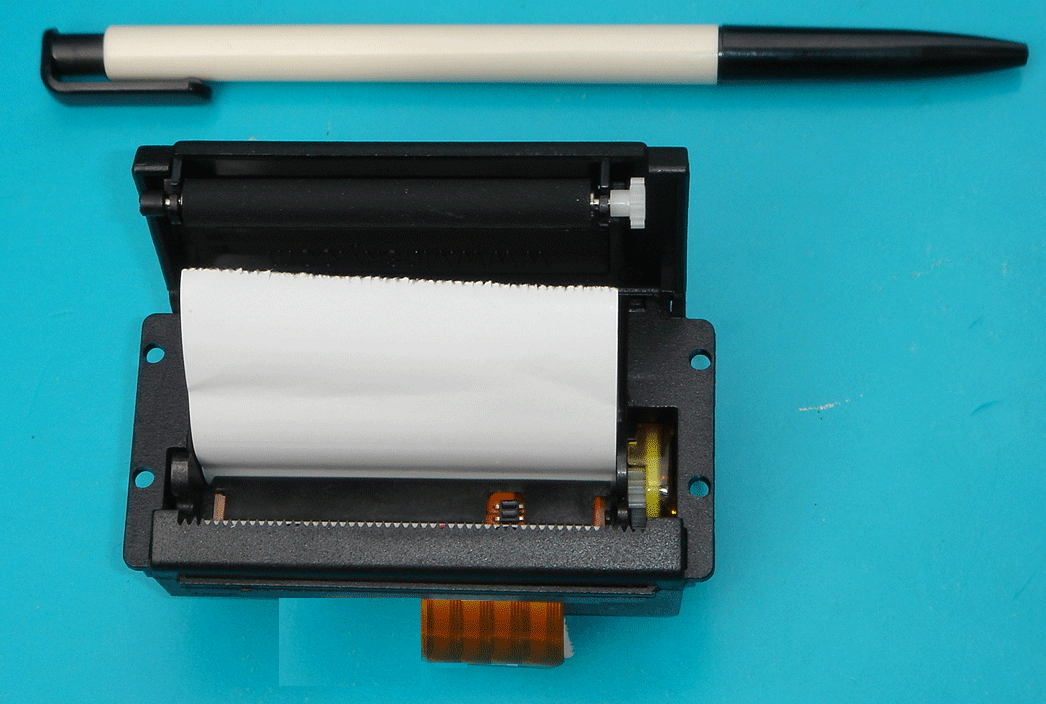

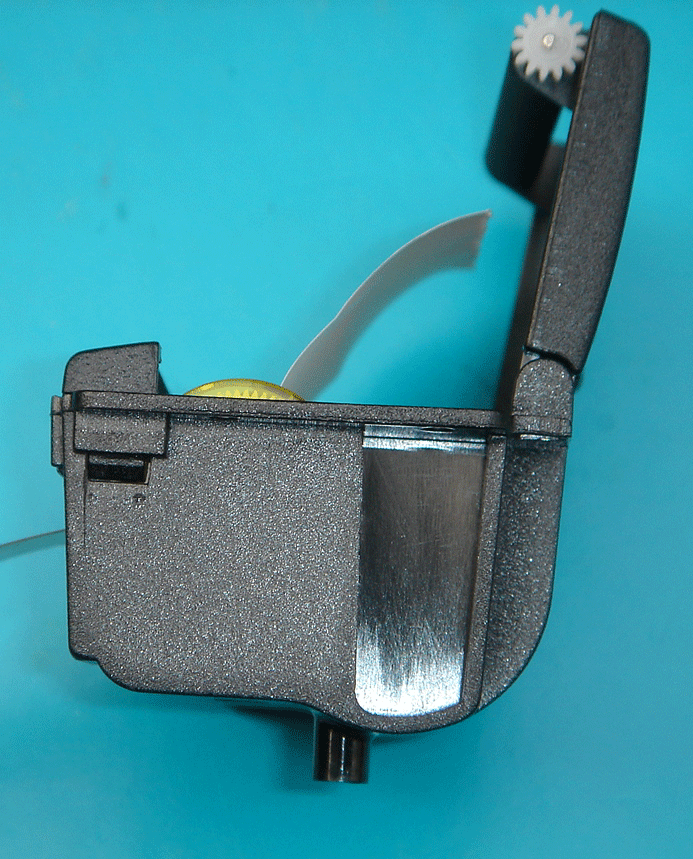

Model : PK-102T


Printing Specifications

Printing Method: Direct thermal

Printing Resolution: 384 dpi (8 dots per mm)

Printing Speed: 60 mm per second maximum

Fonts/Graphics/ Symbologies

Character Set: ASCII International and IBM graphic sets

Graphic Print: Bit addressable graphic command set

Bar codes: Code 39, EAN and UPC. Downloadable fonts, graphics, logos and additional bar codes

Characters Per Line: 48 (14*8) 24 (16*16)

Character Size: 14*8, 16*16 (H x W dot)

Print Contrast: Auto and user selectable

Communications

Standard Interfaces: RS -232C or IrDA (option) or Bluetooth (option)

Baud Rate: 1.2K; 2.4K; 4.8K; 9.6k; 19.2k; 38.4k baud (Default 9.6K)

IrDA Transfer Speed: Fast Up to 38.4k depending on computer capability Standard 9600 connect and transfer

Handshaking: CTS / RTS and/or XON / XOFF

 Print Media

Paper Width: 57 mm maximum

Roll Diameter: 23mm diameter roll (central-diameter roll 0.6mm ), approx. 600cm long

Power Management

Power Supply : DC input +9V~36V/ 3A (Connector)

Battery : 2 cell Lithium Ion,7.4V/1750mAH(option)

Battery Recharge: Internal fast 70 min., fast charge with auto switch to trickle charge; over voltage, over current and over heat protection

Printing Per Charge: ABOUT 31,600 LINE (14*8 Characters)

Power Management: battery saving Auto OFF feature

Physical Specifications

Size: 79.2mm Width x 46.5mm Length x 49.1mm Deep (With Controller)

Weight:   80g without paper (Paper 20g )

Environmental Specifications

Operating Temp: -10 to 50°C

Storage Temp: -20 to 60°C

Humidity: Up to 90% RH (non-condensing)

Media Specifi       Media Specifications

Specification

Parameters

Thickness:

2.2 to 3.5 mils (receipt paper)

Width:

57mm with paper guide spacer installed.

Length:

1 roll of receipt paper is approx. 600cm

Sensing:

No paper detector

Roll Diameter:

Outside: 23 mm  Inside: 6 mm

Maximum Print Area:

48mm * 250mm
