產品名稱：掌上型/手持式 可覆寫 行動無線藍芽(Bluetooth)印表機 Pocket Printer & Mobile Printer & Thermal Mobile

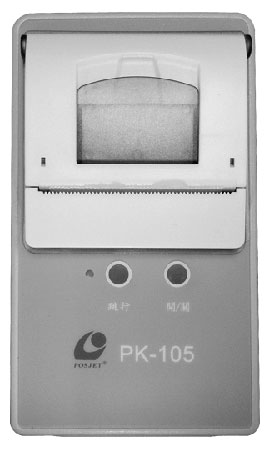

採購型號：PK-101P & PK-105 (熱感攜帶式)
本公司EPSON M-192G 8針印字頭，列印速度：平均1.8行，提供有效率的列印速度。
多重接收介面：RS232<標準介面>或Bluetooth<選購>
或 紅外線(Ir)(選購)，可接收各式行動設備之輸出訊號。
紅外線(Ir)(選購)o-ascii-font-family: Times New Roman">內建字型完整：內建繁體中文13095個常用/罕用字型(另有特殊字型訂製)。
攜帶式內建電源：
使用可充式Ni-Mh或鋰電池 。
省電設計：可連續列印
120 分鐘以上(以本公司提供之電池作為測試依據)，並具有自動關機功能，可延長電池使用時間。
完整充電(1800mhA)連續列印12,000行(5*7)以上。
腰掛式設計：可插掛在腰間，行動中輕鬆列印。
體積輕巧：單手即可掌握105×189
×66.5
mm (W×L×H)；重量：約330g
(不含紙捲重量)。
技術規格
列印方式：點陣式8針(Dot Matrix)
列印速度：平均1.8行/秒 (5 ×7字型，40字/行)
列印字集：英文：256字ASCII碼 中文：13095字【特殊中文字型，可依客戶需求訂製】
送碼方式：BIG5
緩 衝 器：16K Bytes
紙張規格：寬57.5mm；紙捲外徑60mm以內
每行字數：40個英數字(5 ×7字型)；16個中文 字(15 ×14字型) ，可中英數字混合列印。
行 距：0.74mm
字型大小：中文 5. 2 ×3.3mm ( H ×W ) (15 ×14字型)
內建放大字型指令：垂直1倍；水平3倍
周邊規格
內建電源:使用可充式Ni-Mh或 鋰電池
傳輸介面：RS-232 或藍芽介面(Bluetooth class 2)
平均故障週期(MCBF)：1,000,000列印行數
印字機壽命：1,500,000列印行數
使用環境：0~50℃；10-90%RH
連續列印：每充電一次，可使用時間，可連續列印約120分鐘
(說明：以本公司所提供之充電電池(1800mhA)，列印文字為5 ×7字型，可列印約12,000行)。
The
portable printer of PK-101P is designed by use EPSON microdot impact
printer mechanism, high reliability. Major application in mobile device
when need printout listing easily. Major features as following:
Longtime
printing: continuous printing 120minutes.
Over
12,000 (5*7) Lines per Full Charge.
Power
saving function: Auto-power off. (
Paper
feeding: Manual knob or Press button both
Copies
capability: one original plus one copy (2-ply pressure sensitive paper)
Printing
speed: 1.8 lines/sec
Interface: RS232C (RJ-45 phone-jack connector) Infrared and IrDA<optional> or Bluetooth<optional>
Built-in
font: Traditional Chinese 13095 characters built-in
Waist
plug design: 2 directions up or down can rotate by Ir communication
requirement.
Weight:
Dimension:
105 * 189 *
Smile
curve for light water proof
Specification
Print
Method:
impact dot matrix printer (EPSON M-192G 8 print solenoids)
Printing speed: 1.8 lines/sec +/- 20%(typical), (5 x 7 font + 3-dot line spacing)
Reliability: MCBF, 1,000,000 lines (including print solenoid), printer life, 1,500,000 lines
Ribbon cassette: ERC-22 (life: Purple, approx. 1 million characters, Black, approx. 600,000 characters) Or ERC-09 (purple 250,000 characters, black 200,000 characters)
Coping capability: 1 original plus 1 copy
Chars/Line: (5 x 7 font, 40 chars/line), (15 x 14 Chinese font, 16 chars/line) can mixture data
character set: ASCII printable code and Traditional Chinese characters is 13095 (by BIG5)
Font size: Chinese characters 5.2 x 3.3mm (H x W), 15 x 14 font
Line spacing: 0.74mm
Feeding method: Friction method, manual feed knob
Paper
specification: Width: 57.5 +/- 0.5 mm, Paper Roll outer dimension: less
than 60mm, length: 20~30meter. Thickness: 0.06~ 0.085 mm (1-ply paper
roll), upper sheet: 0.066 mm, lower sheet: 0.085 mm (2-ply paper roll)
Control command: Esc command set, Built-in enlarge command; horizontal double size, Vertical 3 time size
Buffer: 64K Bytes
Power:Rechargeable Li-Iron Battery.
RS 232C Interface: RJ-45 phone-jack connector Infrared interface: Angle - upper/lower 15 degree, Length - 75cm .
Environmental condition: 0~50℃,10~90 % RH
Printing loading: continuous printing about 120 minutes, 1800mhA rechargeable battery at full energy, 5 x 7 font, about 12,000 lines Wake-up controller Line (EXT)
An Example
PK-101P Vs. XX400P with Wireless function
Bluetooth module BLT-002 Build-inPK101P

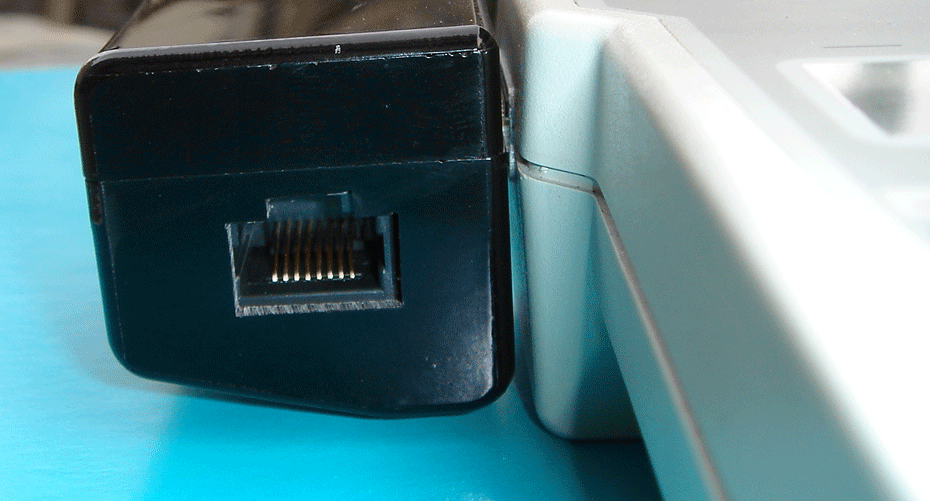

Attachable Bluetooth module BLT-001onXX400P
Max. 4dBm (Out door Distance Approx. 10Meter)
Power Wake up Function (BLT-001)
Data Transmission Approx. 4 Seconds (9600bps)
Build in Rechargeable Li-Iron
BLT-001 Specification
Bluetooth Standard Ver.1.2 Conformity
Peer to Peer SPP Mode
UART Data Rate 9600bps (Default Setting)
Power and Communication Indicator (LED)
RJ-45 For Communication and Recharge function
BLT-001 Dimension: 38(L) × 33(W) × 36(H) mm
PK-101P Specification
Build in BLT-002 module
EPSON Impact 8 Pin Printer Head
Build in Copy Capability: Original and one copy RJ-45 For Communication and Recharge function
Package included
PK101P
printer unit build-in Bluetooth module BLT-002
BLT-001
Bluetooth module (Rechargeable battery build inside)
PK101P printer unit build-in Bluetooth module BLT-002“Home/Office use” power adapter AC96~260V In, 8.4V Out. For both of PK101P and BLT-001
